# Compare Calibrations

## CAEN

In order to compare the different results from the calibrations you an use the `Compare` program. In order to do so make sure you actually build the latest version and check out its most recent options

```bash
# make Compare program
make Compare

/Compare -h
Usage:
./Compare [-option (arguments)]
Options:
-d [0-3] Debugging mode
-e [0-1] extended plotting
-E [1-X] histo reading options for expanded file list
-f       Force to write output if already exist
-F fff   set explicit plot extension explicitly, default is pdf
-i uuu   Input file list
-I uuu   expanded input file list
-L [1-63]restrict max layer plotting
-o vvv   Output file name (mandatory)
-O kkk   Output directory name for plots (mandatory)
-r rrr   Name of run list file  2024 PS TB [../configs/DataTakingDB_202409_CAEN.csv]
-R       Trending plots versus run #
-V       Trending plots versus Vop
-h       this help

Examples:
./Compare (-f) -o TrendingOutput.root -i input_list.txt (-f to overwrite existing output)
./Compare (-f) -o TrendingOutput.root InputName*.root InputName2.root (-f to overwrite existing output)

```

This program can be run in multiple ways in terms of inputs&#x20;

1. with an auto-expanded list using `-i calibFiles*.root`&#x20;
2. with a file list containing in each line the calibration files you want to use `-i calibFileList.txt` . This list has should end with `.txt` otherwise it might not be correctly detected
3. with a file list containing in each line a calibration file & the histo-output of the a specific calibration step.  It can be used with `-I calibFileListExtended.txt` . This list has should end with `.txt` otherwise it might not be correctly detected.&#x20;
   1. Treatment of different histogram outputs is foreseen and can be steered with `-E [1-X]` currently implemented are:&#x20;
      1. `-E 1` (default if `-I` is called) format of [step 2](../../calibration/mip-calibration#step-2) output
      2. `-E 2` format of [step 1](../../calibration/mip-calibration#step-1) output

Similar to the other programs the options `-d` & `-e` will enabled various debugging options and more plots.  In the current way two main ways of evaluating the data are implemented:

1. As a function of run number using the `-R` option
2. As a function of operational voltage using the `-V` option

Each of them is  useful for different things. Below you find a few sample plots which are being created by the code.  The output root file and plotsFolder have to be given after `-o` and `-O`  respectively, without them the program will crash

```bash
# example for running Voltage dependence with extended output:
./Compare -F png -e 1 -d 1 -f -V -i calibFileList.txt -o ../Trending/TrendingAllCalibs_Volt.root -O ../Trending/VoltDep -r -r ../configs/DataTakingDB_202409_CAEN.csv

# example for running run dependence without extended output & a file including the hist output:
./Compare -F png -d 0 -e 0 -f -R -I calibFileList_45V_expanded.txt -o ../Trending/TrendingAllCalibs_Runs45V.root -O ../Trending/RunDep_45V -r ../configs/DataTakingDB_202409_CAEN.csv
```

<div><figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FXVEi7EXpw4C3iJGd3yju%2FHGPedSummary_RunOverlay.png?alt=media&#x26;token=4b5f31a5-8af1-4a2e-bab5-e70be06bf472" alt=""><figcaption><p>HG pedestal mean comparison at 45V.</p></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FKIbrjmoeJRaWyHazRhbO%2FHGPedWidthSummary_RunOverlay.png?alt=media&#x26;token=afd284cc-e664-4f4c-ac79-77cb226d3555" alt=""><figcaption><p>HG pedestal width comparison at 45V</p></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2Fol80LexAKBcJO6qTGCIo%2FLGPedSummary_RunOverlay.png?alt=media&#x26;token=dae9c31b-a32f-40bd-a3dc-d346ce632924" alt=""><figcaption><p>LG pedestal mean comparison at 45 V.</p></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FG47BupNlrf1ntDsbXwCw%2FLGPedWidthSummary_RunOverlay.png?alt=media&#x26;token=2e63394f-1603-49a2-b425-8e1904c915c2" alt=""><figcaption><p>LG pedestal width comparison at 45 V.</p></figcaption></figure></div>

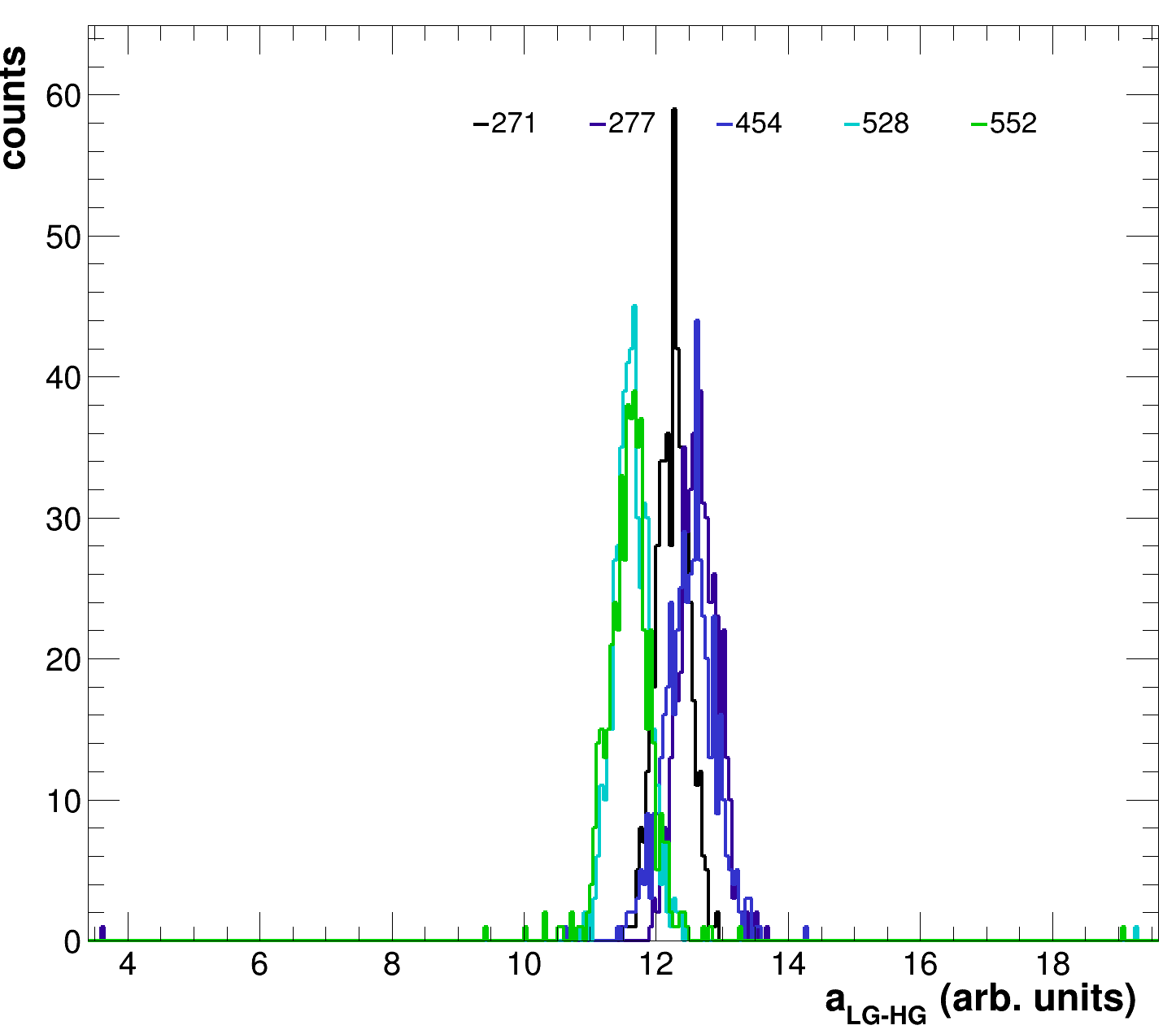

<div><figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FYuW0JNUjiyQN964DrtMl%2FHGLGCorr_RunOverlay.png?alt=media&#x26;token=de4abd46-8dca-4e3f-95ee-2e9de6835949" alt="" width="375"><figcaption><p>HG-LG slope compared for all runs at 45V.</p></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FsgxLvZ555IvVRBzR87hk%2FLGHGCorr_RunOverlay.png?alt=media&#x26;token=b449d941-b37d-4f7e-909d-74898d045b3f" alt="" width="375"><figcaption><p>LG-HG slope compared for all runs at 45V.</p></figcaption></figure></div>

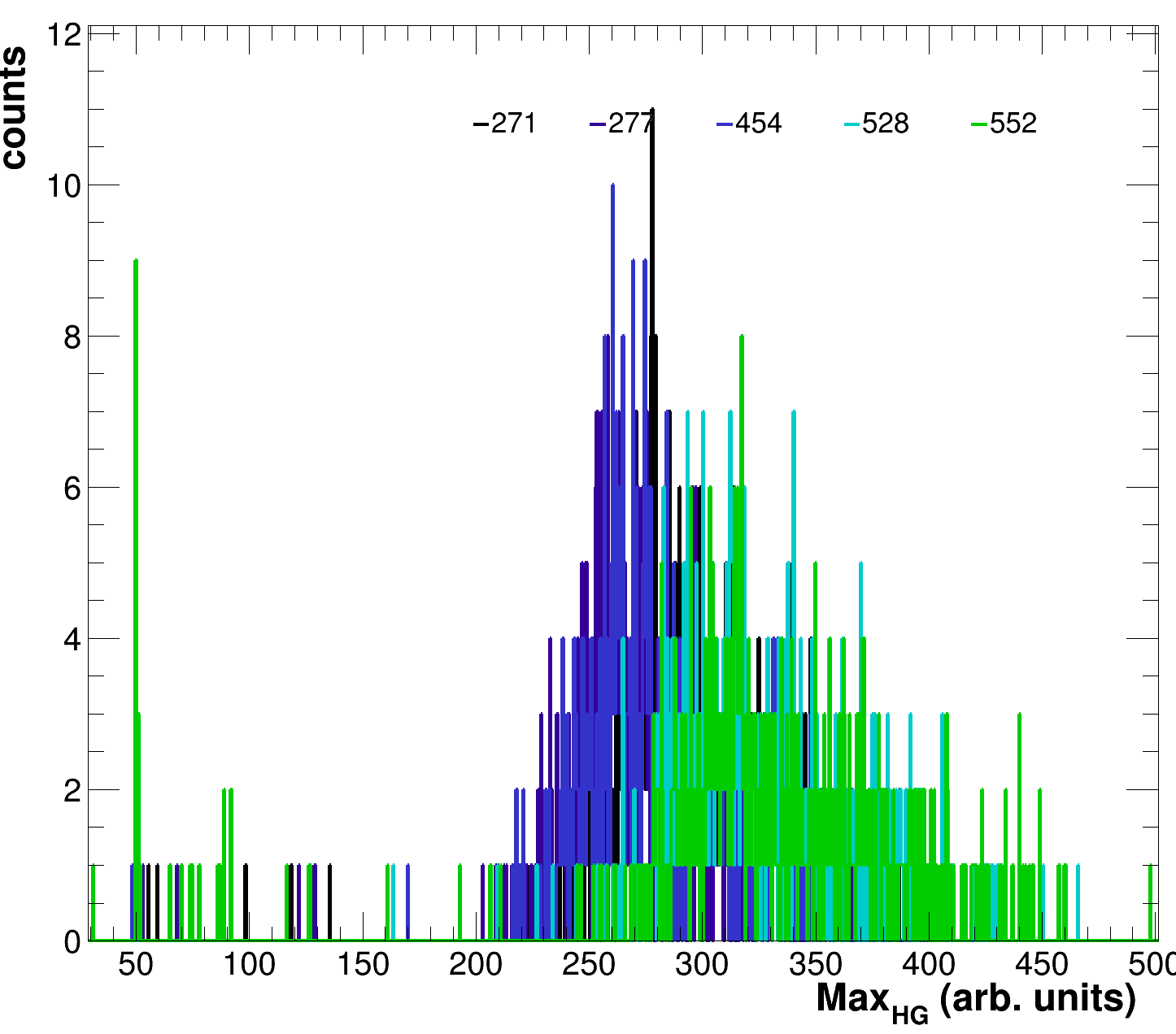

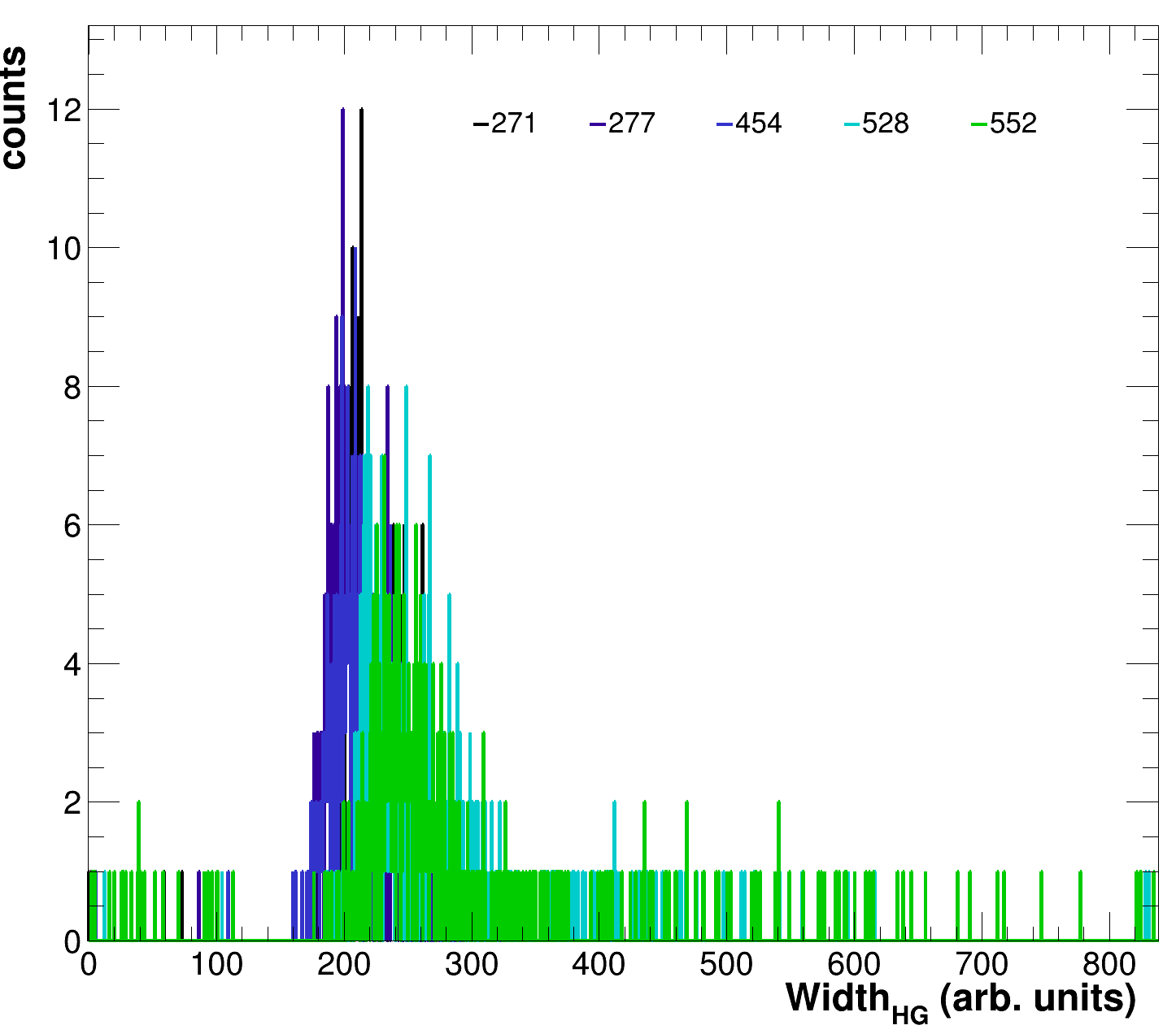

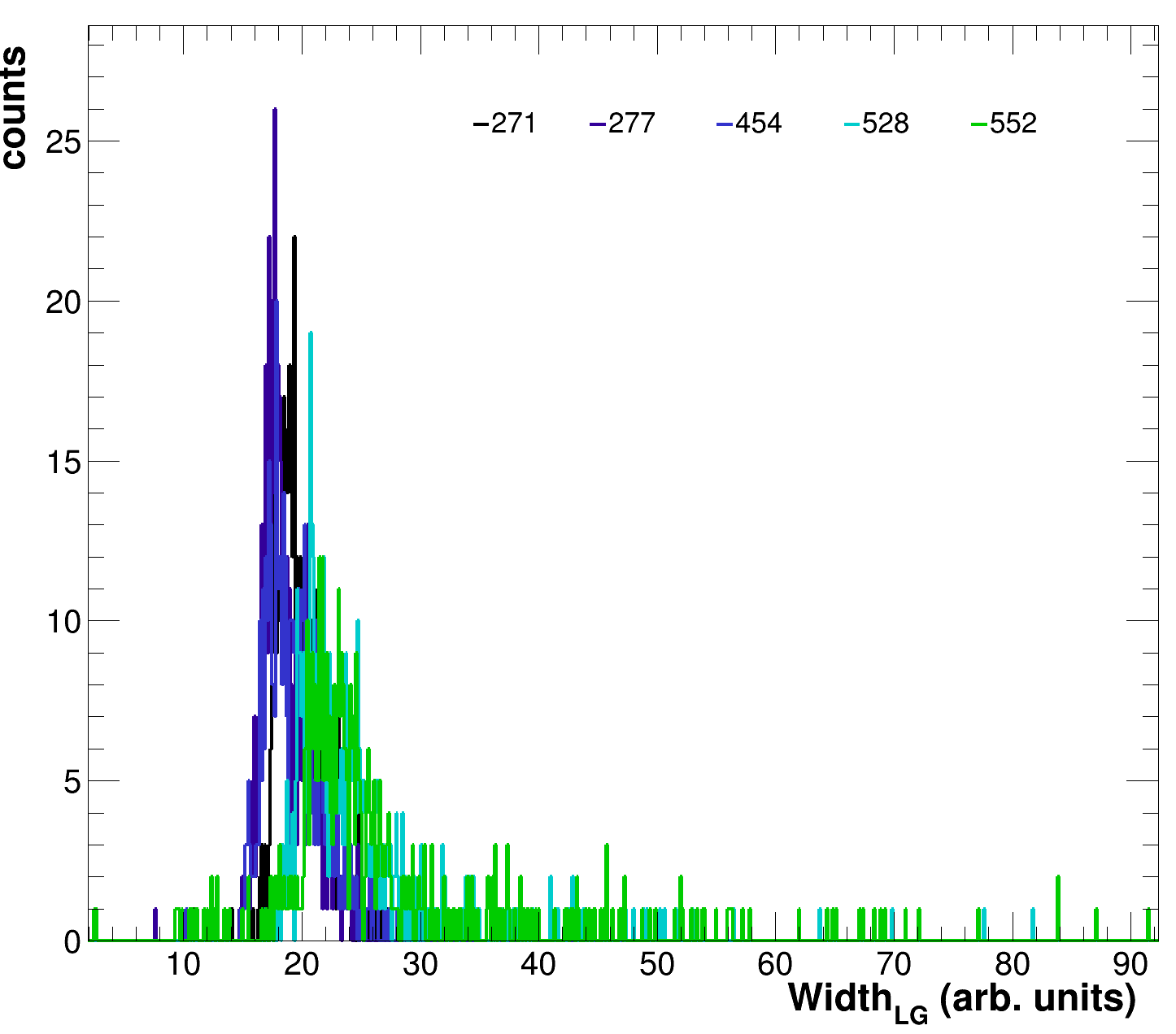

<div><figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FddA4kPAvvc5twfGO2Jqg%2FHGScaleSummary_RunOverlay.png?alt=media&#x26;token=455cecbd-d056-405d-aecb-2dc8ffa68c66" alt=""><figcaption><p>HG mip equivalent values for all runs at 45V.</p></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FJ1KazuWUwxc10TTWHvXY%2FHGScaleWidthSummary_RunOverlay.png?alt=media&#x26;token=3b02ed00-37d5-4674-8515-df7b13048924" alt=""><figcaption><p>HG mip width values for all runs at 45V.</p></figcaption></figure></div>

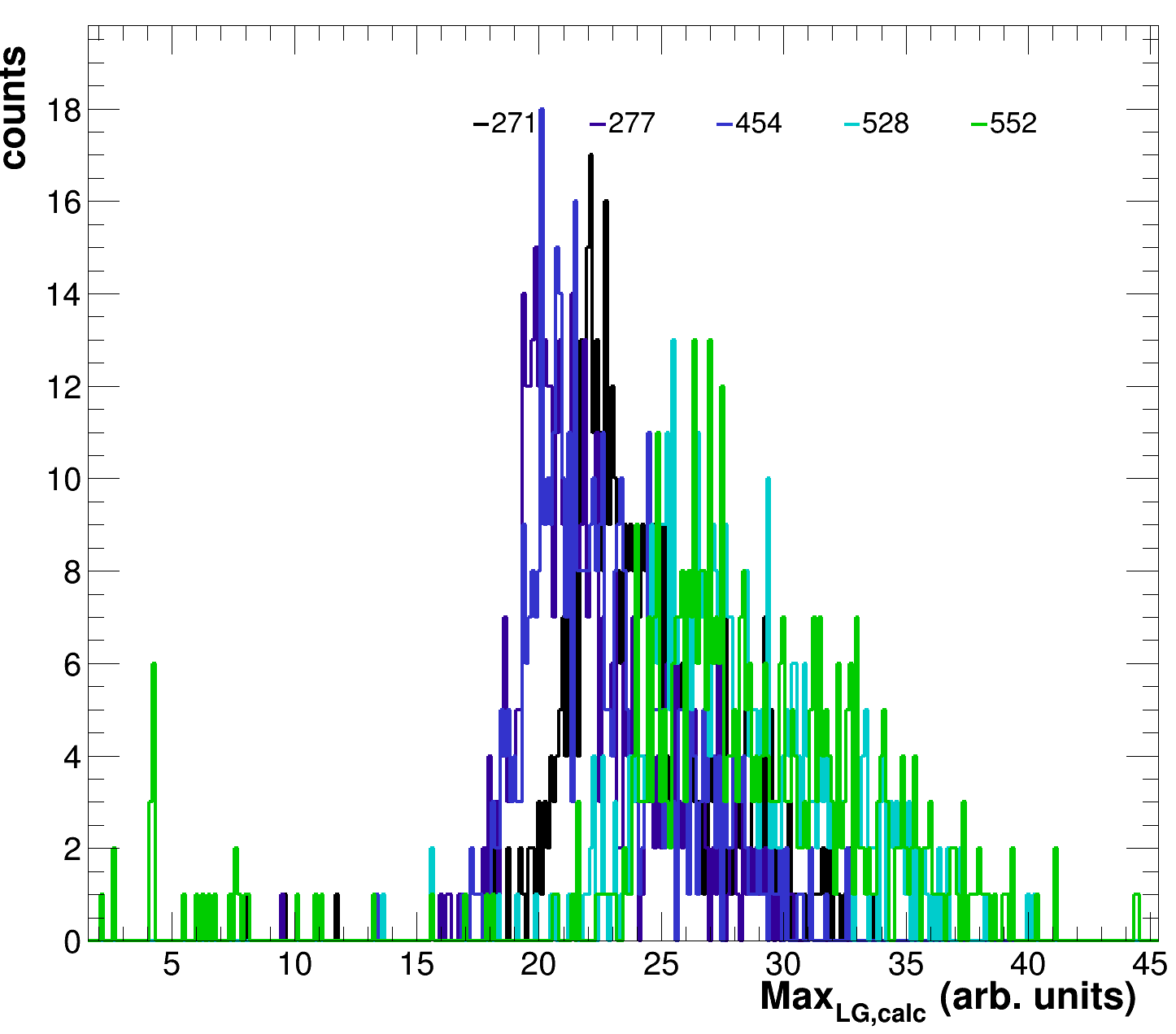

<div><figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2F4MELXFwIlA9KO6bE7AnJ%2FLGScaleCalcSummary_RunOverlay.png?alt=media&#x26;token=0e04b053-f87f-4496-ad85-8de968c10154" alt=""><figcaption><p>LG mip equivalent values, calculated based on the  HG/LG-HG corr values, for all runs at 45V.</p></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FVzuaypNBEjAf12XiP5en%2FLGScaleSummary_RunOverlay.png?alt=media&#x26;token=e352b96e-bf8a-45d3-a864-4d936a48cc48" alt=""><figcaption><p>LG mip equivalent values, as determined by the fit of the LG histos, for all runs at 45V.</p></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FSHAp6z45EJPIvToRRbyd%2FLGScaleWidthSummary_RunOverlay.png?alt=media&#x26;token=23df3a60-2f59-4674-bc3b-c611792607fb" alt=""><figcaption><p>LG mip width values for all runs at 45V.</p></figcaption></figure></div>

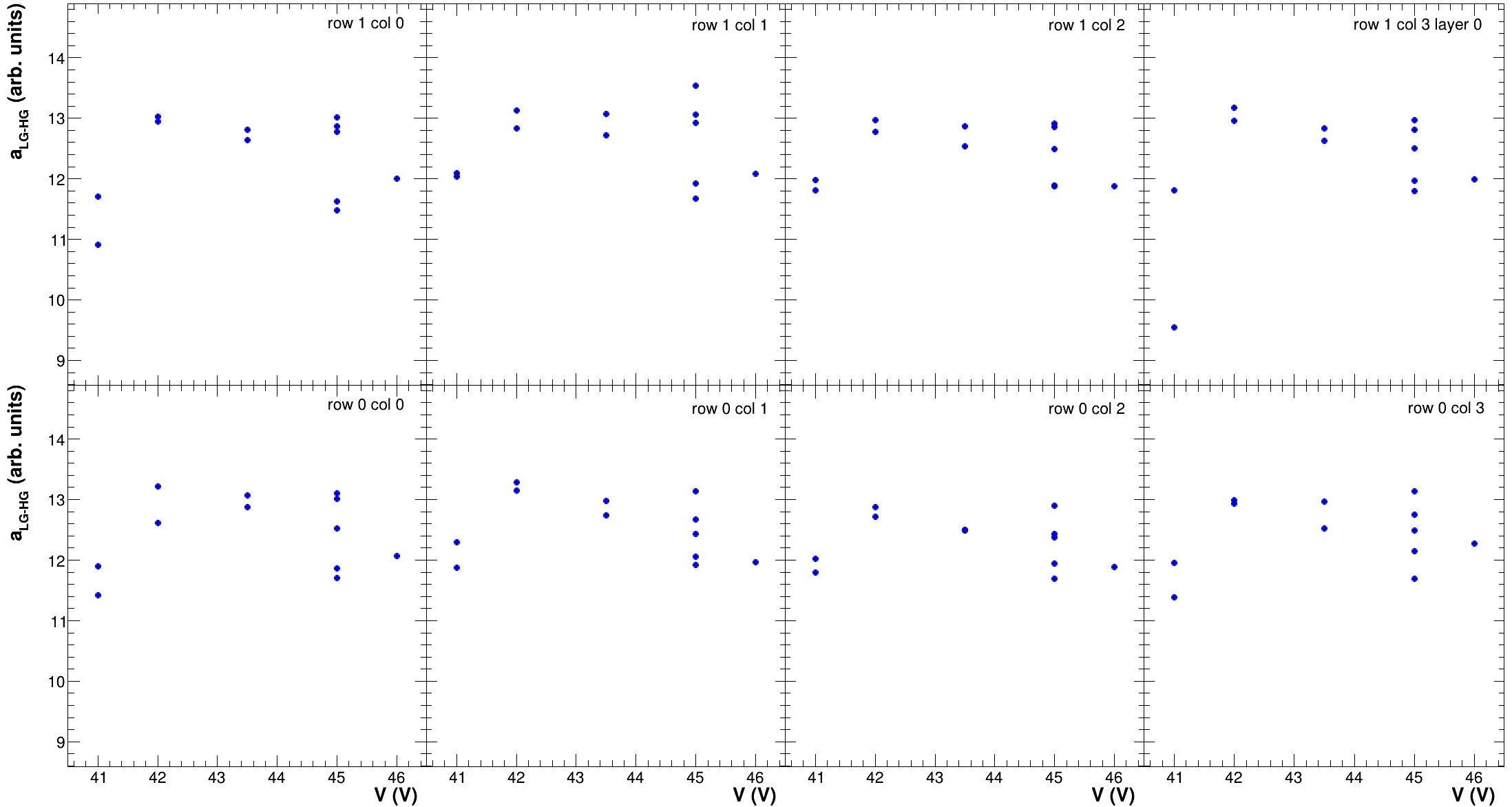

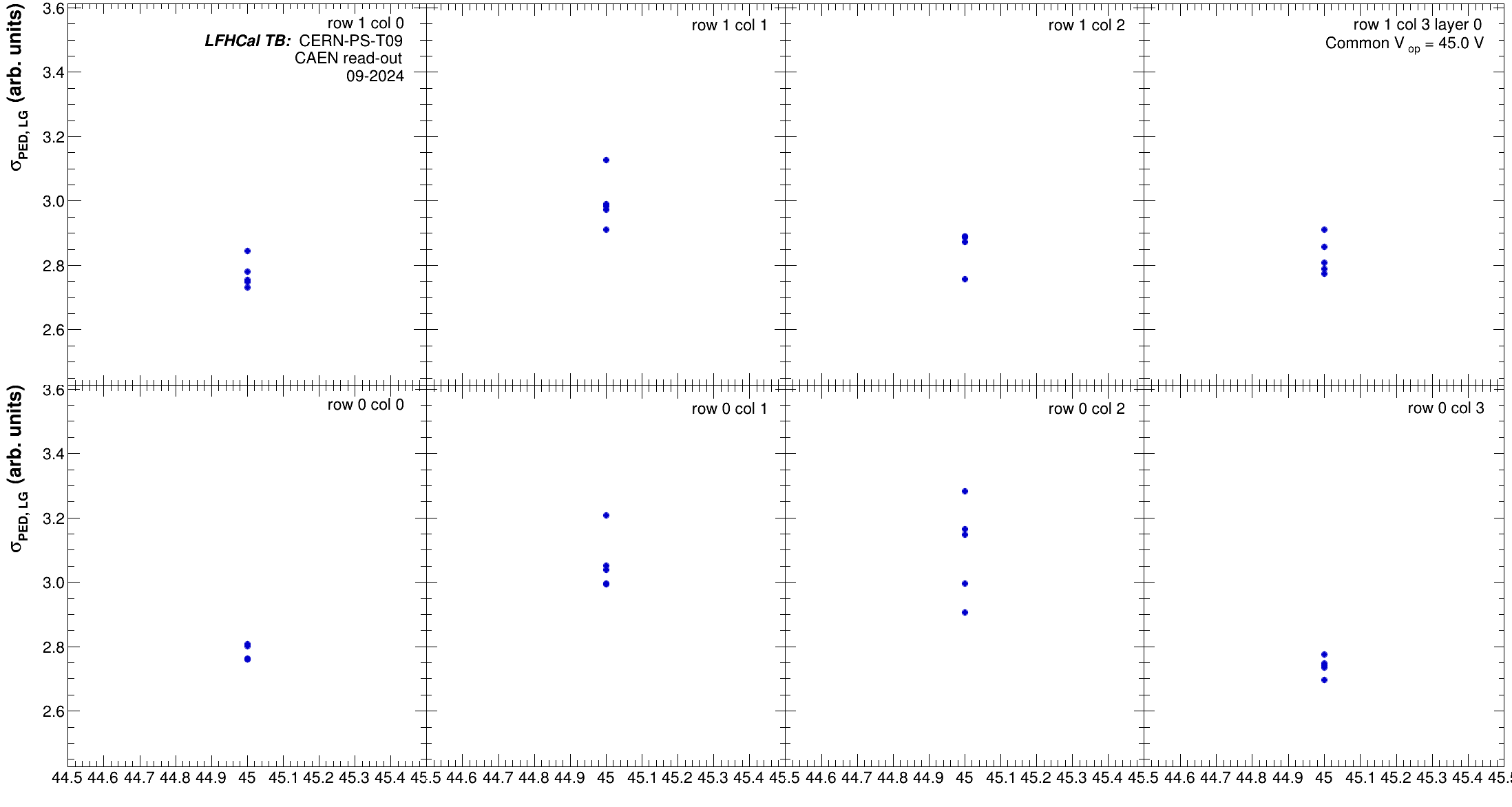

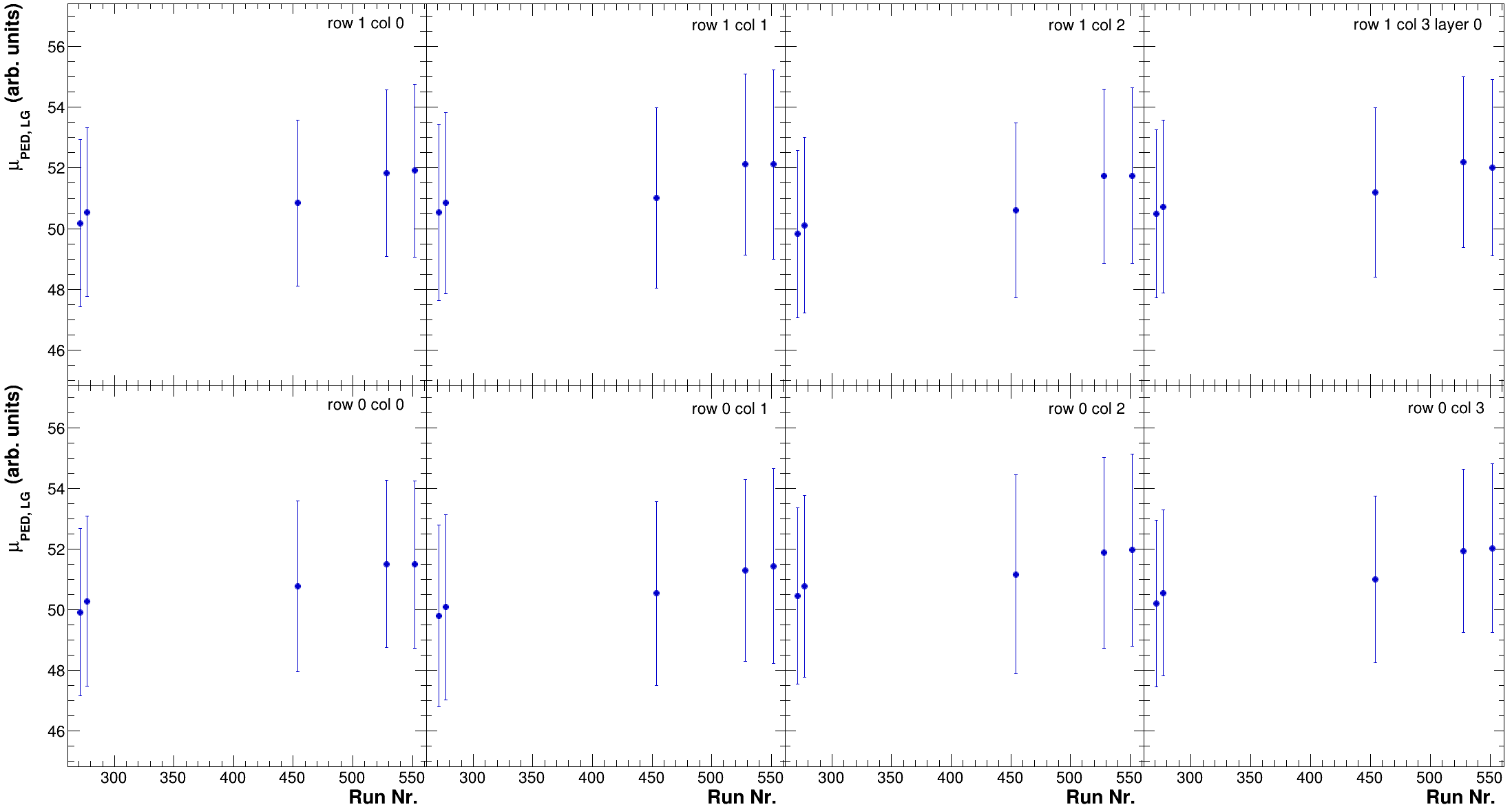

If the extended plotting is enabled also the following individual layer plots will be produced.&#x20;

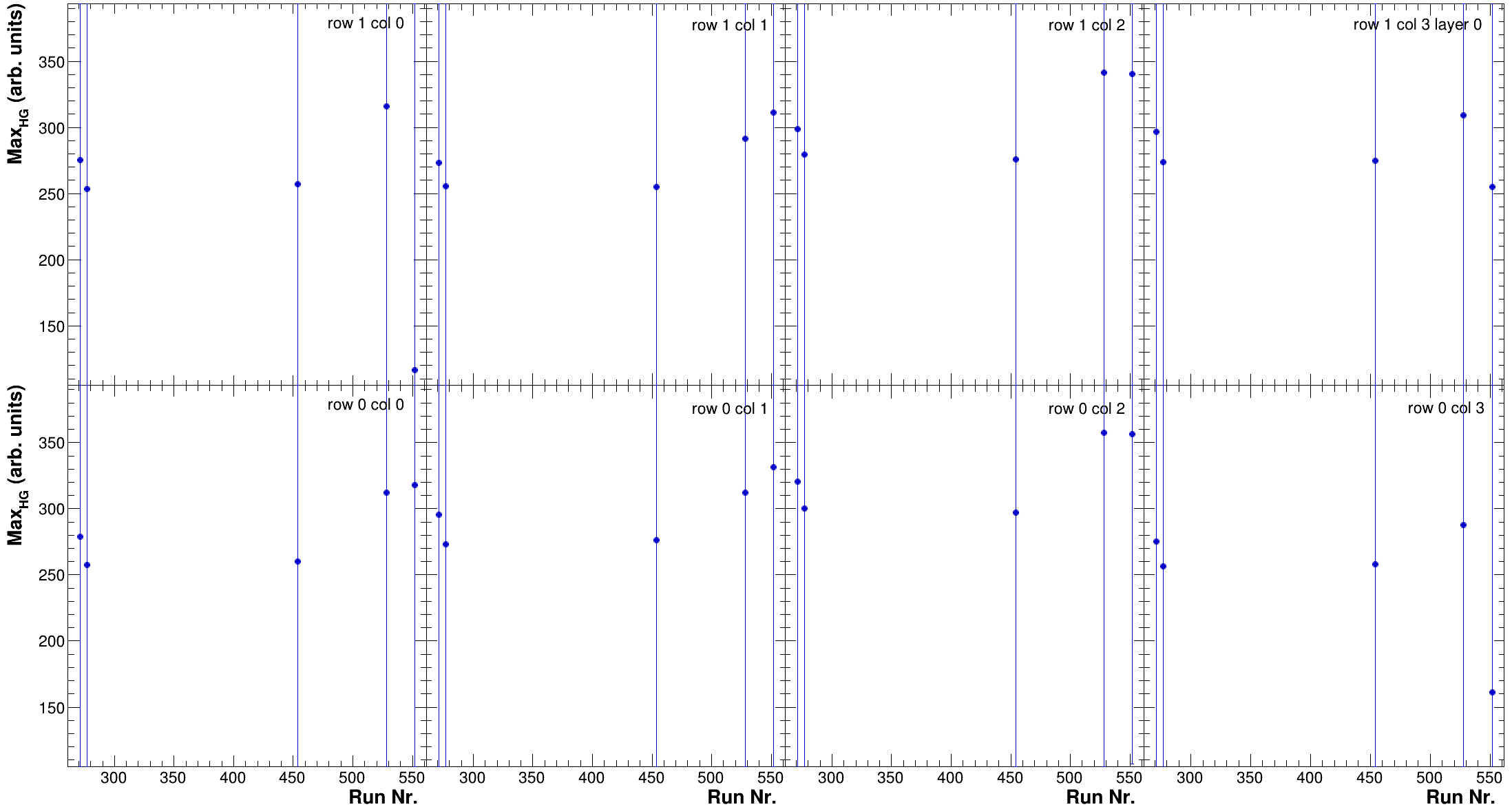

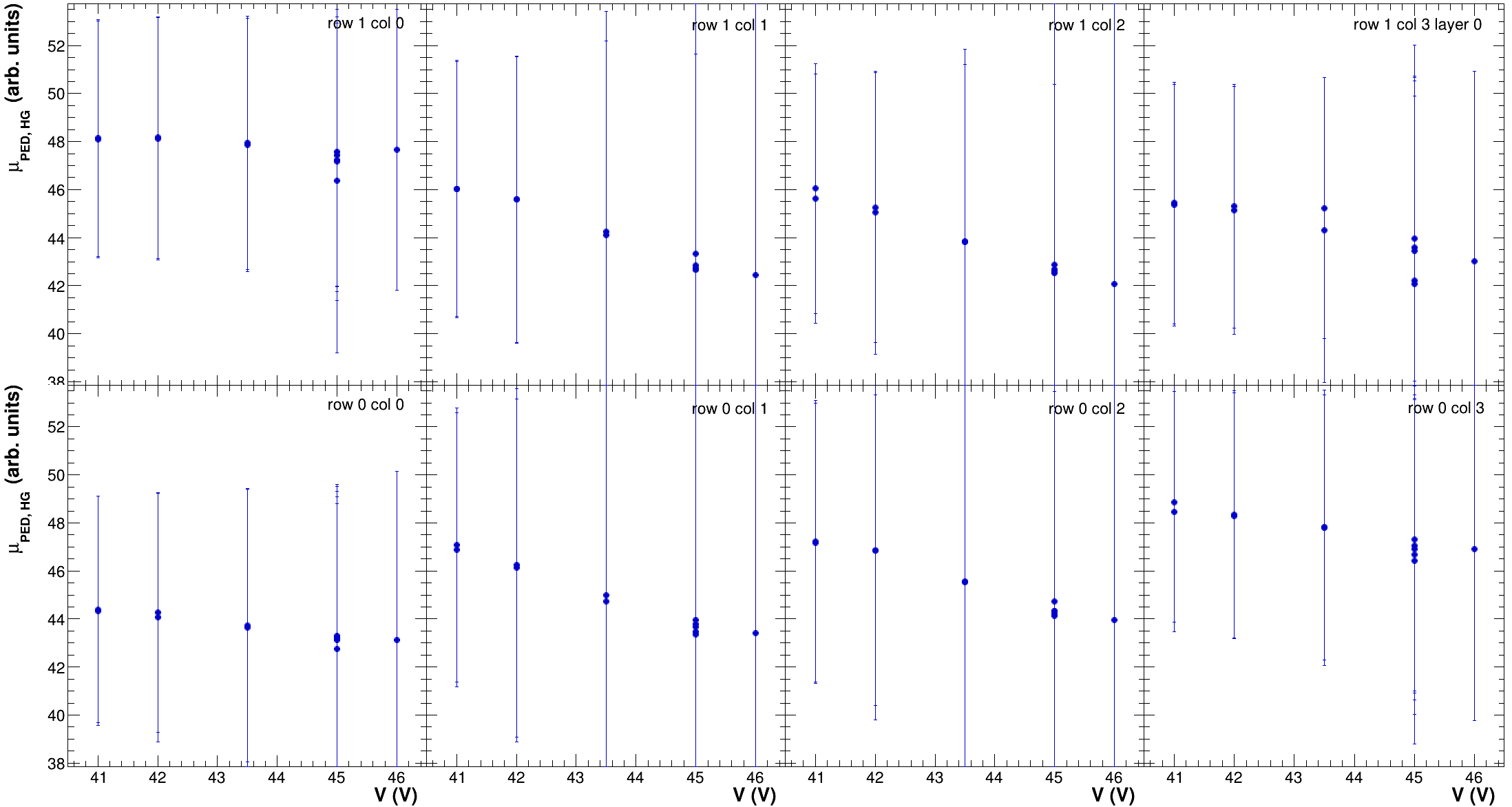

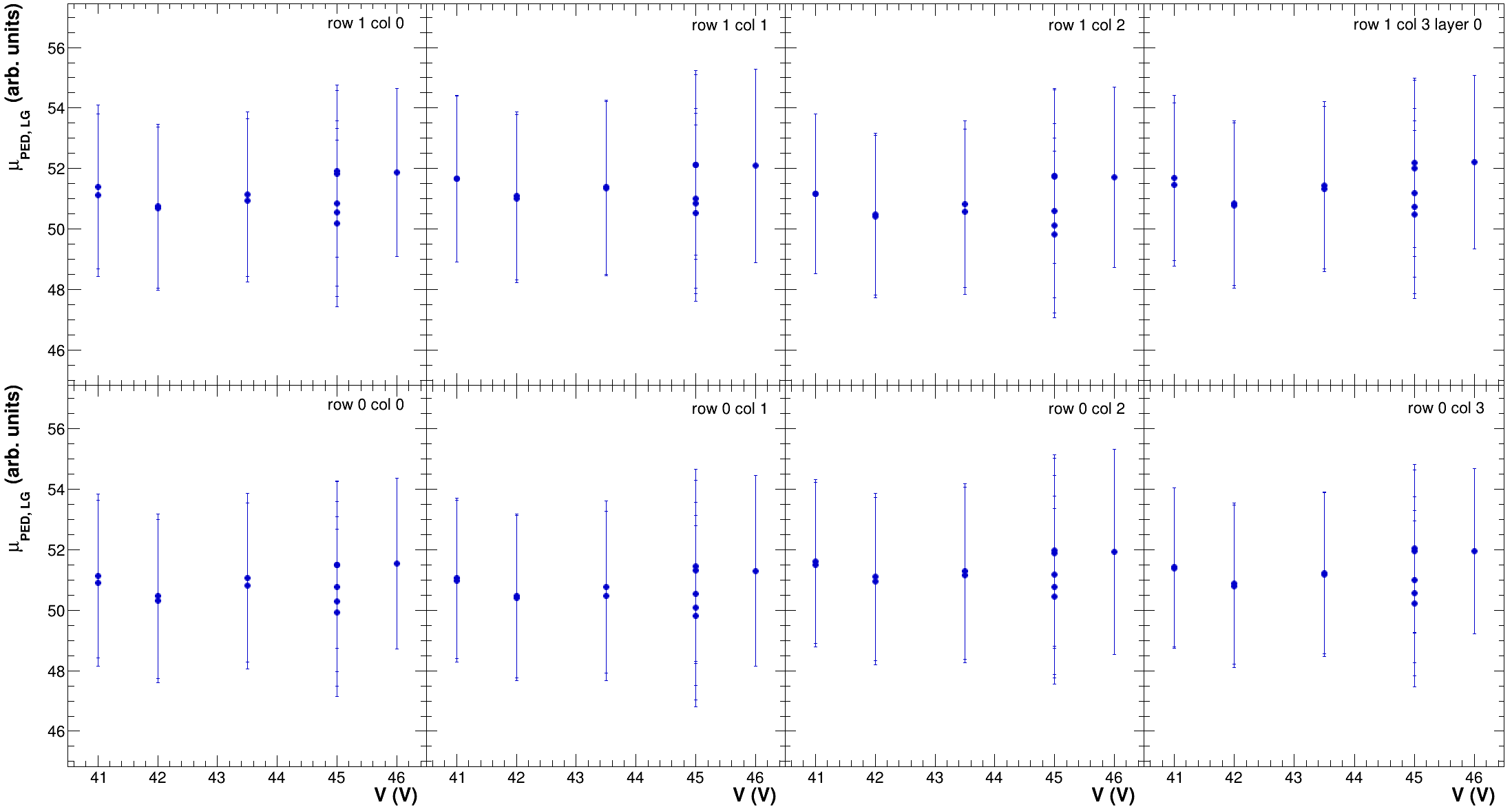

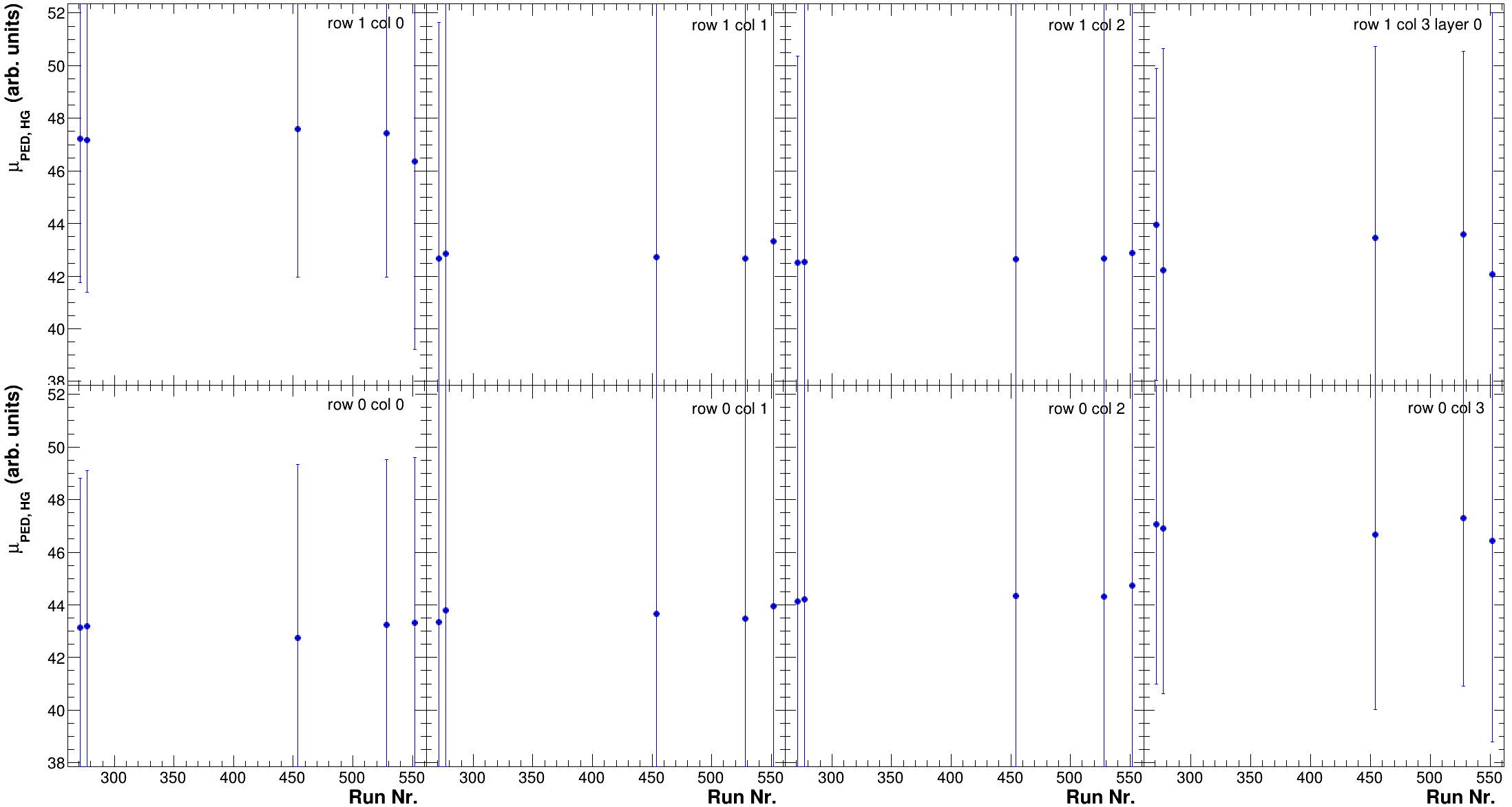

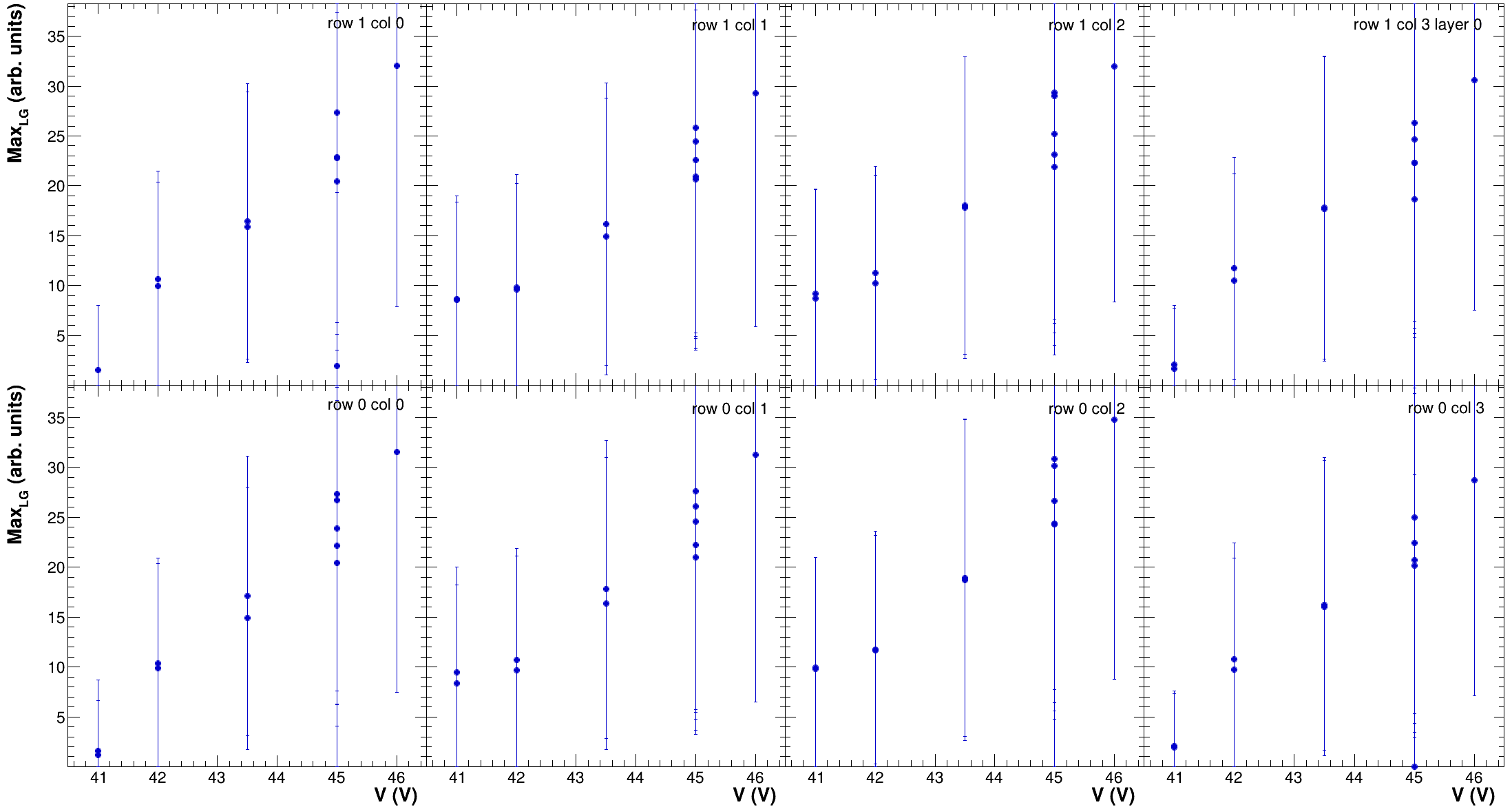

<div><figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FM27AgBJc1fQJVE3s8TBa%2FHGLGCorr_Layer00.png?alt=media&#x26;token=f86489a7-1ad0-4726-85b7-66799a47ddb6" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FkLFgFPSipsrogIOyWyOP%2FHGped_Layer00.png?alt=media&#x26;token=8d0360c4-cbd1-405c-a5c5-ac7af8c77c4a" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FPmMwbDYCewvUi4uquLJX%2FHGScale_Layer00.png?alt=media&#x26;token=c8a0b72f-ccfa-4545-b07e-f399ad06861f" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FVZPwX4Gbld2T9OWVkadt%2FLGHGCorr_Layer00.png?alt=media&#x26;token=a799aedd-784f-4cb1-9699-75786cd0de36" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2F7o3KTvPZTZA4nsQLrQth%2FLGped_Layer00.png?alt=media&#x26;token=083f9829-ff6d-4864-8af0-9d81b9049368" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2Fk4svOZ7R5nwUo9Iq022M%2FLGScale_Layer00.png?alt=media&#x26;token=c86420bd-c40a-4d76-8390-fcff25332b80" alt=""><figcaption></figcaption></figure></div>

<div><figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FUm8tXMuPoJQh8yQgBgqM%2FHGLGCorr_Layer00.png?alt=media&#x26;token=da71691a-17fc-49a6-a072-f8bae42e7e5f" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FlNX3n3fYDg7WpVbX5Ky8%2FHGped_Layer00.png?alt=media&#x26;token=e4864e66-3aba-4921-9901-683e113eb102" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2Fn2zD0t2hPTU5wGtlhVq1%2FHGScale_Layer00.png?alt=media&#x26;token=c5832692-21ba-4803-a892-cc0b0c448f83" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2F0pyx9x9sVZZxLivtb3eX%2FLGHGCorr_Layer00.png?alt=media&#x26;token=8ea0457e-a75c-48a5-933b-9bb36dbddd0d" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2F77xGKsOodGkg9T4z7hU3%2FLGped_Layer00.png?alt=media&#x26;token=402e7fe2-e05c-4620-8bda-4778e5de0cee" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FMuftrFNfyv6OraLjyrO6%2FLGScale_Layer00.png?alt=media&#x26;token=205f3a66-d1a0-4823-b5fe-5ec9ea246bd4" alt=""><figcaption></figcaption></figure></div>

<div><figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2Fejees4H8iJJtntNfI3Wz%2FHGpedwidth_Layer00.png?alt=media&#x26;token=f4c58a0c-de44-4886-bae1-320c84e53d7a" alt=""><figcaption></figcaption></figure> <figure><img src="https://790592996-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fs5C8zkGYS3GkZpbQrPK0%2Fuploads%2FqRJgTWs0fq3I6AxIwvK4%2FLGpedwidth_Layer00.png?alt=media&#x26;token=528f4610-db88-4245-8c77-c62b990233b6" alt=""><figcaption></figcaption></figure></div>
